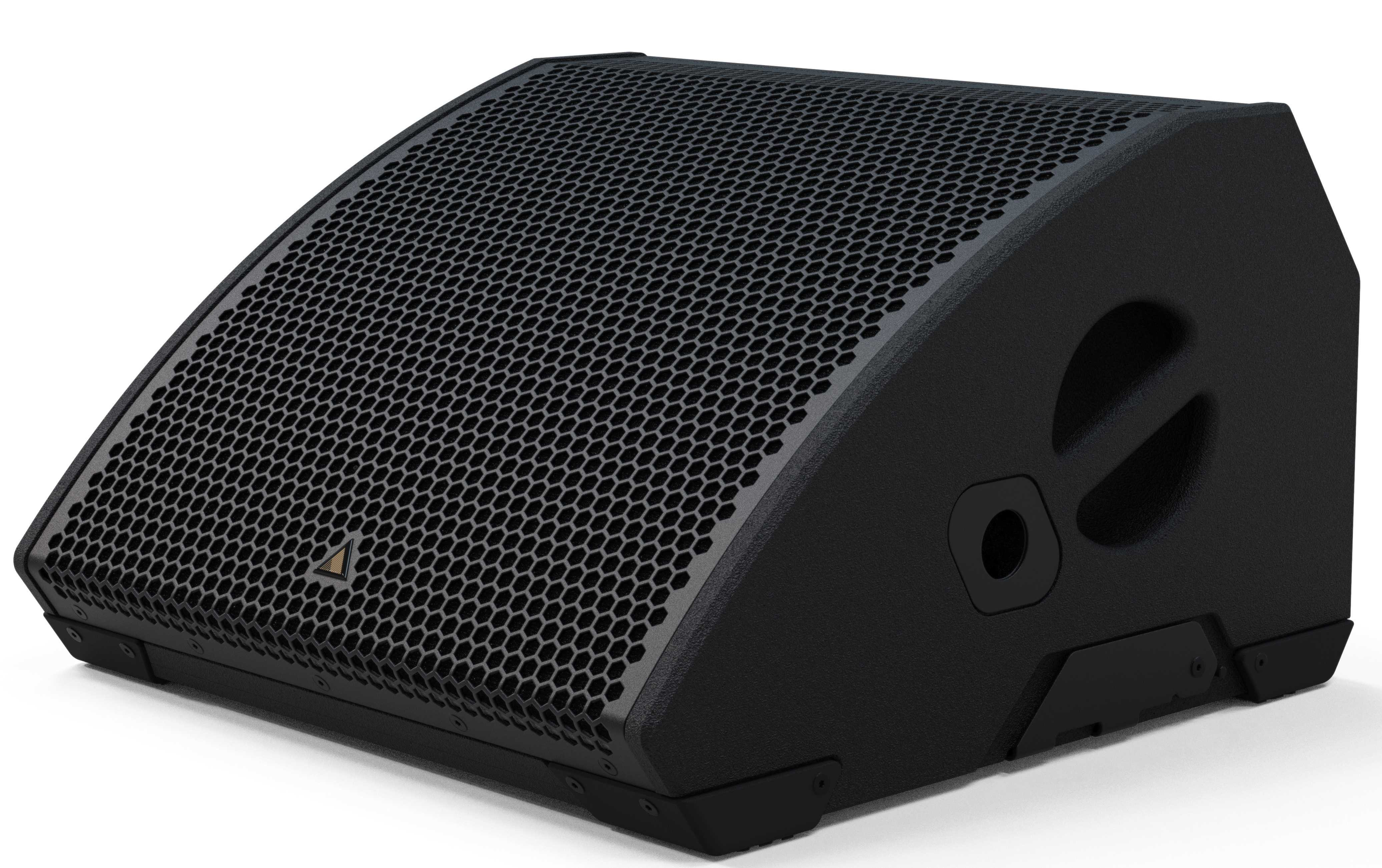

The M10 is a high-performance dual 10" monitor loudspeaker engineered for professional audio environments. Delivering exceptional sound clarity across a 60 Hz to 20 kHz frequency range, this monitor provides expansive 50° horizontal and 100° vertical coverage with remarkable precision.
Designed with professional flexibility in mind, the M10 features compact dimensions of 20.5" width, 12.75" height, and 21.25" depth, weighing 22 kg. The monitor includes an integrated pole mount and a kickstand allowing up to 45° face tilt, accommodating diverse acoustic settings.
A powered version (MG10) is also available. The M10 represents a perfect blend of acoustic excellence, robust engineering, and versatile performance, making it an ideal solution for studio, live sound, and installation applications that demand superior audio quality.
| Frequency Range (+/-3 dB) | 60 Hz - 20kHz |
| Nominal Directivity (-6 dB) H x V | 50° x 100° |
| Maximum Peak SPL** | 139 dB |
| Components LF | 2x ND10-LM 10” Kevlar Neodymium Driver |
| Components HF | Adamson NH3 3” Diaphragm / 1.4” Exit Compression Driver |
| Nominal Impedance LF | 8 Ω |
| Nominal Impedance HF | 8 Ω |
| Power Handling (AES / Peak) LF | 700 / 2800 W |
| Power Handling (AES / Peak) HF | 120 / 480 W |
| Rigging | Integrated Pole Mount |
| Connection | 2x Speakon NL4 |
| Height Front (mm / in) | 324 / 12.75 |
| Width (mm / in) | 520 / 20.5 |
| Depth (mm / in) | 540 / 21.25 |
| Weight (kg / lbs) | 22 / 48.51 |
| Processing / Network | Lake |
| M10 Spec Sheet | One page spec sheet for the M10. | n/a |
