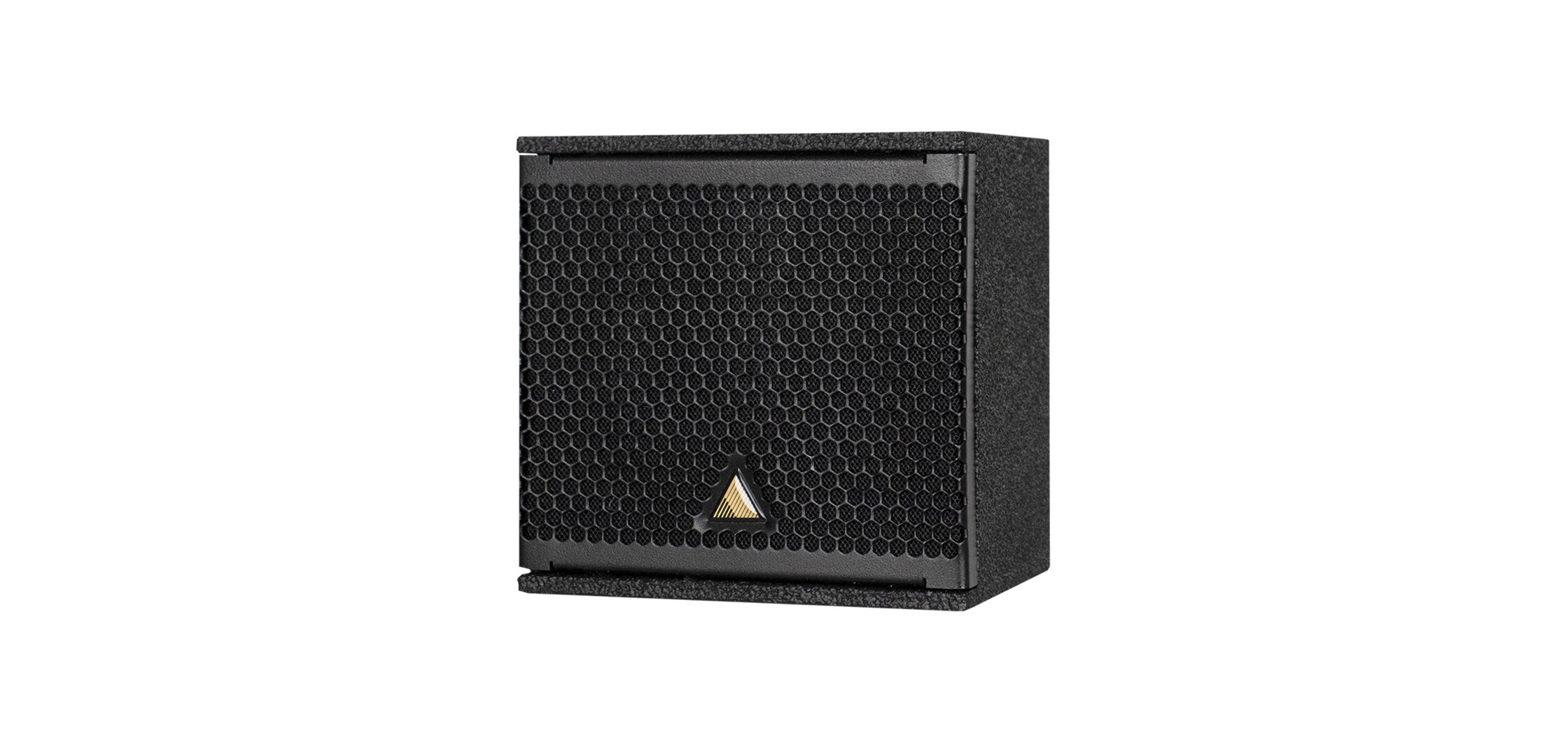

The IS5c is an ultra-compact, light-weight, passive 2-way coaxial loudspeaker, with a 100° conical dispersion pattern. Designed to produce linear, high-resolution audio throughout its intended bandwidth, the enclosure contains a 1.4” dome compression driver coaxially combined with a 5” low frequency transducer.
The cabinet construction uses marine grade birch plywood as well as aircraft grade aluminum and steel, and is equipped with two Speakon™ NL4 connectors, as well as a 2-point barrier strip. A plate and screw rigging system is placed on top and bottom of the enclosure, with available accessories allowing the enclosure to be deployed seamlessly in a variety of applications.
The IS5c is suited to supplement larger systems as a fill cabinet, or to handle smaller applications on its own. Target applications include performing arts centers, conference rooms, night clubs, restaurants, and houses of worship.
| Frequency Range (-10 dB) | 95 Hz - 20 kHz |
| Nominal Directivity (-6 dB) H x V | 100° Conical |
| Maximum Peak SPL** | 123 dB |
| Components MF/HF | 5” LF / 1.4” Dome Compression Driver |
| Nominal Impedance Passive | 16 Ω |
| Power Handling (AES / Peak) Passive | 125 / 500 W |
| Rigging | Top and Bottom mini-SLR discs, each containing 3/8” threaded insert |
| Connection | 2x Speakon™ NL4 and 2-Point Barrier Strip |
| Height Front (mm / in) | 149 / 5.75 |
| Height Back (mm / in) | 149 / 5.75 |
| Width (mm / in) | 153 / 6 |
| Depth (mm / in) | 134 / 5.25 |
| Weight (kg / lbs) | 2.25 / 5 |
| Supported Processing | Lake, IPD, IPX |
**12 dB crest factor pink noise at 1m, free field, using specified processing and amplification
 | IS5c Tilt Bracket (934-0046) | Bracket for installing IS5c. |
| IS5c Spec Sheet | One page spec sheet for the IS5c | n/a |
| IS5c User Manual | Comprehensive User Manual for the IS5c | n/a |
| 3D CAD Drawings | 3D CAD drawings of all IS-Series enclosures and rigging accessories | n/a |
